Spanners

Demo

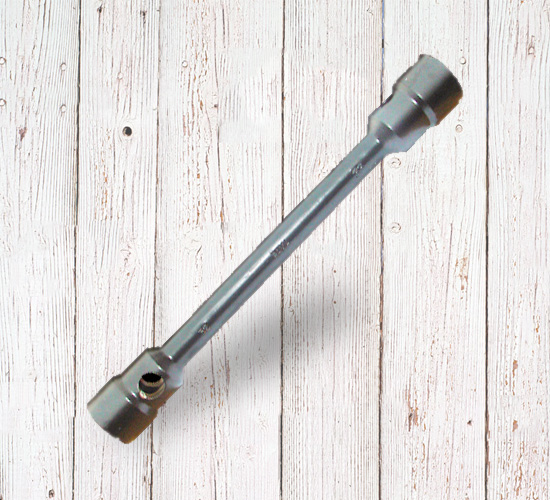

Double End Truck Wrenches

Socket Size	Length
Demo Double End Truck Wrenches
SAE
1-1/8" with 13/16" square x 1-1/2"	4.6 lbs (2 kg)
1" with 5/8" square x 1-1/4"	4.3 lbs (1.9 kg)
7/8"x 1-1/16"	4.5 (2 kg)
1-1/16"x 1-1/8"	4.5 lbs (2 kg)
1-3/16"x 1-3/16" (1-3/4"Stud Depth)	4.6 lbs (2 kg)
1-1/2"x 13/16” square	4.5 lbs (2 kg)
1-1/4"x 1-1/16"	4.4 lbs (2 kg)
1" with 5/8" square x 1-3/16"	4.5 lbs (2 kg)

Metric
Socket Size	Length
17 mm square x 35 mm	4.5 lbs (2 kg)
24 mm x 33 mm	4.4 lbs (2 kg)
27 mm x 30 mm (1-3/4" Stud Depth)"	4.6 lbs (2 kg)
21 mm square x 41 mm	4.5 lbs (2 kg)
30 mm x 33 mm (1-3/4" Stud Depth)	4.6 lbs (2 kg)
33 mm with 21 mm square x 41 mm	4.5 lbs (2 kg))

SAE/Metric
Socket Size	Length
33 mm with 13/16"􀀀square x 1-1/2"	4.5 lbs (2 kg)

Demo

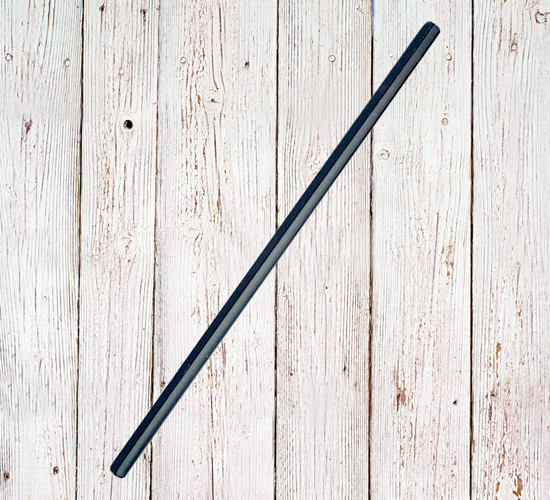

Truck Wrench Handle

Socket Size	Length	Weight
Demo Truck Wrench Handle
22" (56 cm)	3/4" Hex	2.7 lbs (1.2 kg)
30" (76 cm)	1" Round	6.5 lbs (2.9 kg)
30" (76 cm)	3/4" Hex	7 lbs (3.2 kg))

Demo
Heavy-Duty Truck Lug Wrenches

Socket Size	Length	Weight
Demo Heavy-Duty Truck Lug Wrenches
1-1/16",1-1/4",1-1/2",13/16"square	27-1/2"(70 cm)	13.8lbs(6.1 kg)
24, 27, 30, 33 mm	27-1/2"(70 cm)	13.5 lbs(6.1 kg)
1-1/2",13/16"square,30,33mm	27-1/2"(70 cm)	14.2 lbs(6.4 kg)
1-1/4",1-1/2",13/16"square,3/4"service arm	27-1/2"(70 cm)	13.5 lbs(6.1 kg)
1-1/16",1-1/4",1-1/2",13/16"square	27-1/2"(70 cm)	13.5lbs(6.1 kg)

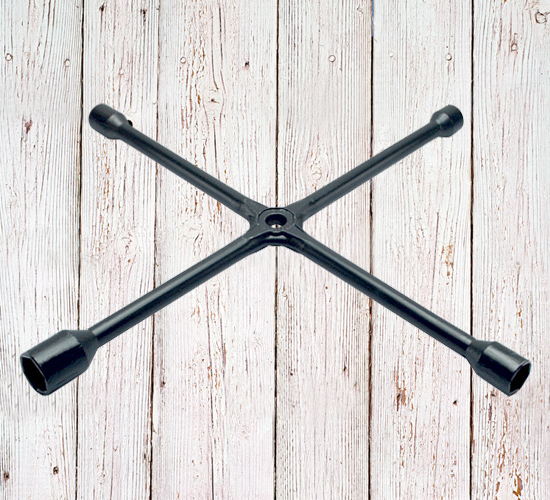

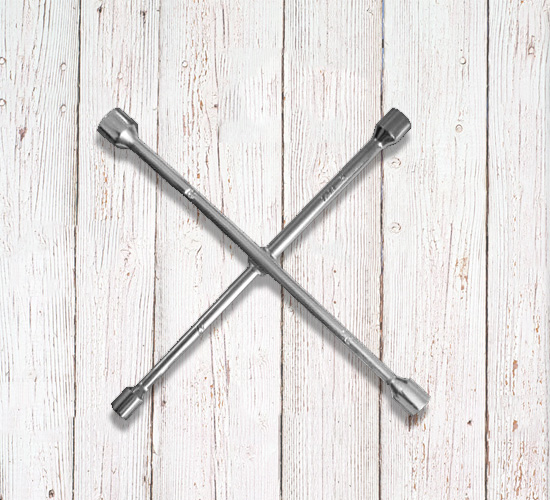

AS – SP01
CROSS WHEEL SPANNER

SIZE	MM	INCH	STD.PKG.
AS – SP01 CROSS WHEEL SPANNER
10x11x13x14	12	8,5,10	50
17x19x21x23	14,15,18	14,20,25	10,20
17x19x11/16x13/16	14,16	14,20,25	10,20

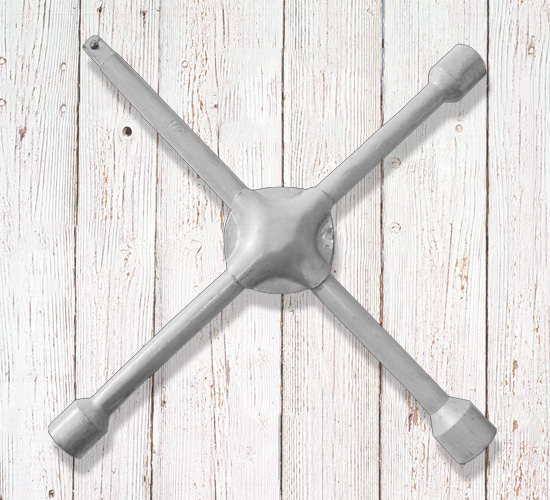

AS – SP02 CROSS WHEEL SPANNER (RE- INFORCED)

AS – SP02 CROSS WHEEL SPANNER (RE- INFORCED)
SIZE	MM	INCH	STD.PKG.
17x19x 22x1/2	14,16	14	10,20
24x27x32x3/4"	20,22	20, 25	10
24x27x 30x32	20,22	20, 25	10

AS – SP03 2 WAY WHEEL SPANNER

AS – SP03 2 WAY WHEEL SPANNER
SIZE (mm)	LENGTH (mm)	STD. PKG.
24x27	400	12,16
27x33	400	12,16
32x32	400	12,16
32x33	400	12,16
19x38	400	12,16
21x41	400	12,16

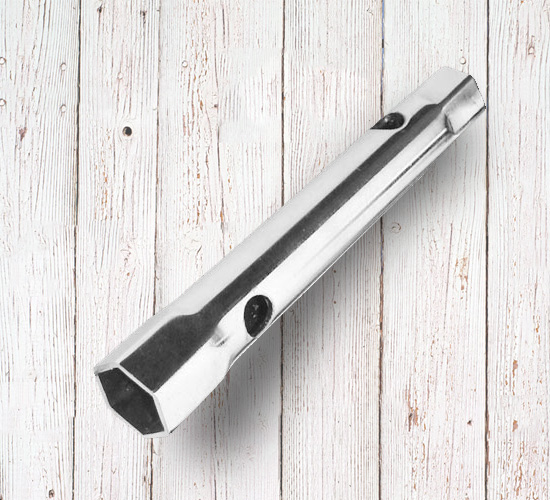

AS – SP04 SOLID BOX

AS – SP04 SOLID BOX SPANNER HEXAGONAL
SIZE	MM	WEIGHT	STD.PKG.
10x11	120	100	200
18x19	165	350	60
24x27	190	700	30
27x30	210	850	24
27x32	210	1.050	20

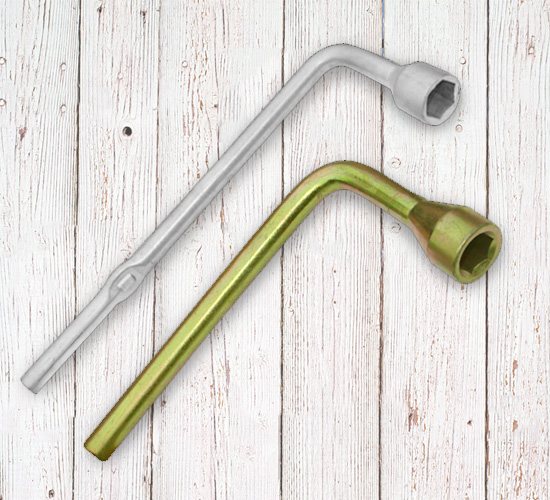

AS – SP05 L

AS – SP05 L- SPANNER
SIZE	STD. PKG.	ECO. PKG.
18mm	48	80
19mm	48	80
20.8mm	48	80
21mm	48	80
23mm	48	80

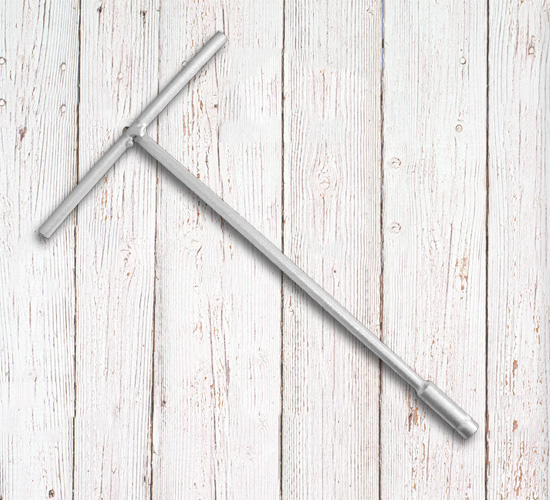

AS – SP06 T SOCKET

AS – SP06 T SOCKET SPANNER
SIZE	Dia(MM)	INCH	STD .PKG.
8 mm	9,10	9,10	60
9 mm	9,10	9,10	60
10mm	9,10	9,10	60
13mm	9,10	9,10	60
14mm	9,10	9,10	60
25mm	9,10	9,10	60

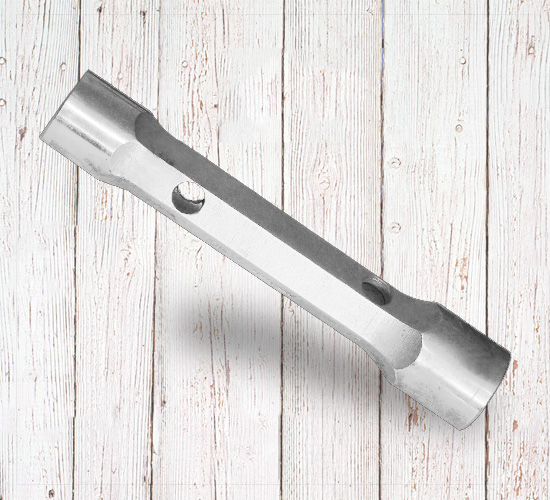

AS – SP7 Tubular

AS – SP7 TUBULAR SPANNER
SIZE	STD.PKG.
12x13	240
18x19	100
24x27	36
30x32	36
36x41	16
41x46	16

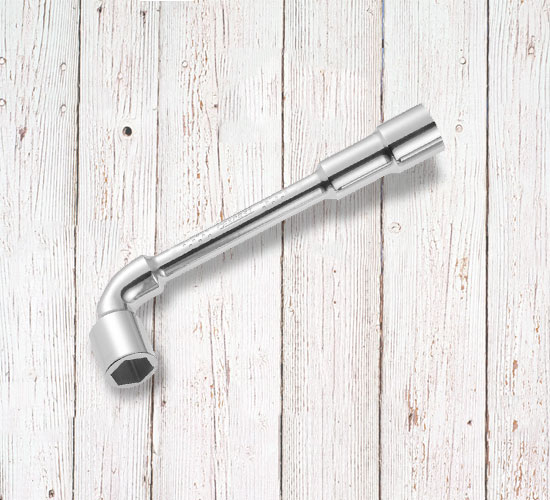

AS - SP8 Angle Socket Wrench

SIZE	LENGTH (mm)
AS - SP8 Angle Socket Wrench
8 x 8	115
9x9	122
10x10	130
11x11	136
12x12	145
13x13	152
14x14	160
15x15	170
16x16	178
17x17	187
18x18	195
19x19	205
20x20	212

6 x 6 Point & 6 x 12 Point.
Hot Upset Forging.
Full Polished/ Head Polished/ Matt Finish.

3 Cr V3 Material/ Carbon Steel.
Nickel Plated/ Zinc/ Black Phosphated
Hardened & Tempered

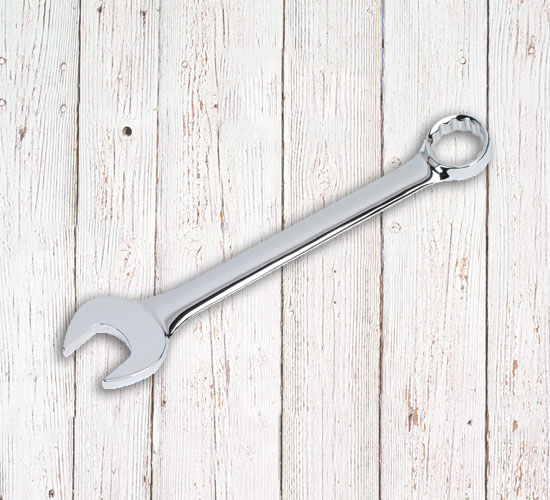

AS - SP9 Combination Spanner

Size	Length in MM	Net Wt.in gms.
AS - SP9 COMBINATION SPANNER
6 x 7	122	23
8x9	140	32
10x11	155	50
12x13	171	62
14x15	190	80
16x17	204	110
18x19	220	150
20x22	235	200
21x23	248	230
24x26	267	320
24x27	267	275
25x28	280	345
30x32	301	450

METRIC SIZE
No.of Pcs./ Set	Size MM	Net wt. In gms.
6	6x7,8x9, 10x11,12x13, 14x15,16x17.	357
8	6x7,8x9, 10x11,12x13, 14x15,16x17, 18x19,	707
12	6x7,8x9, 10x11,12x13, 14x15,16x17, 18x19, 20x22,21x23,24x27, 25x28,30x32	2007
8	6x7,8x9, 10x11,12x13, 14x15,16x17, 18x19,	707

Drop Forged , Long Pattern Chrome Vanadium Steel, Chrome Plated Polish Head

Available in Elliptical Type, Raised Type & Recessed type.

«
